Historic Water Works Standpipe Investigation

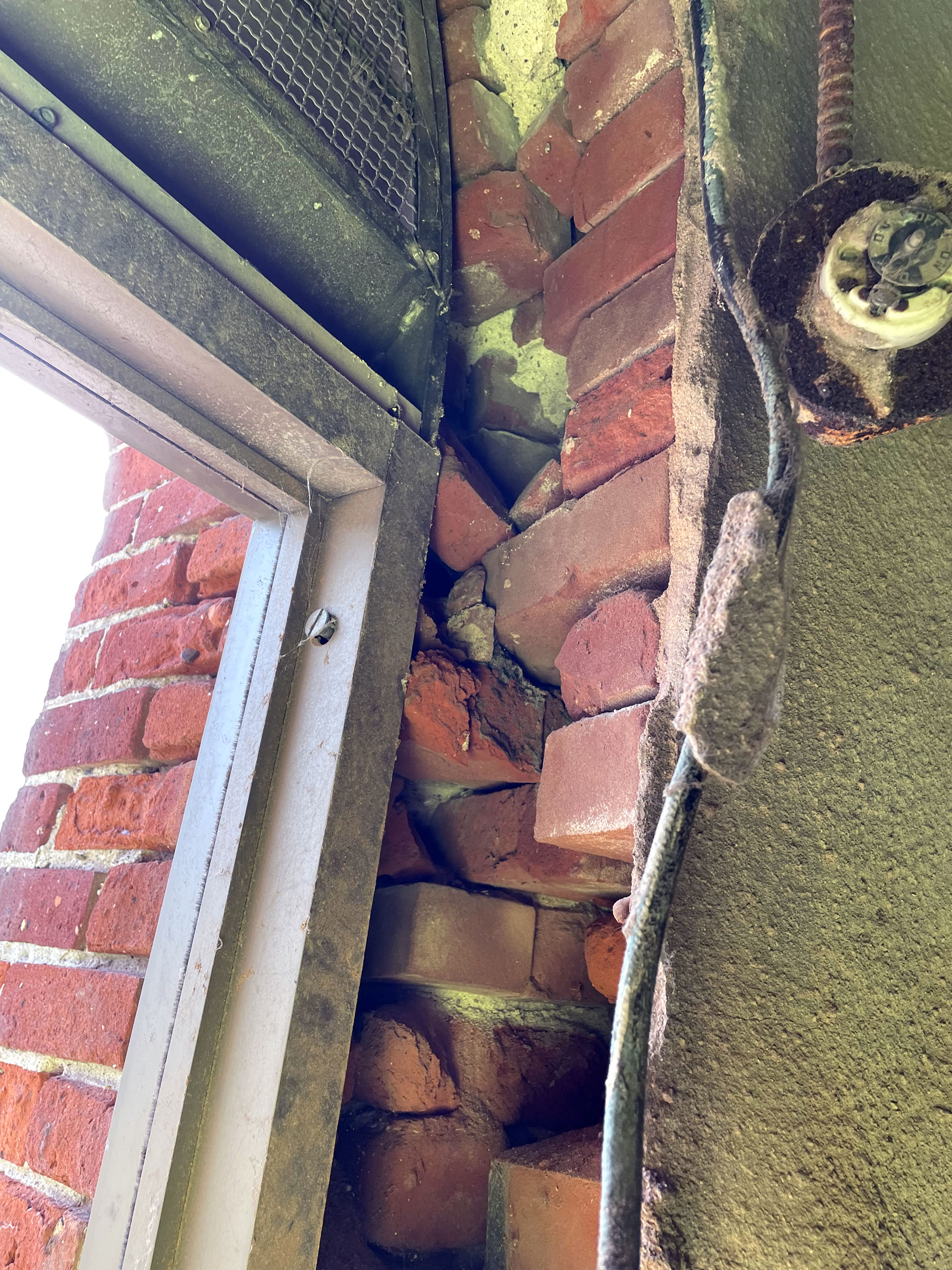

JPR was engaged to perform a Forensic Structural Engineering/Architectural Investigation of the Town’s Historic Water Works Standpipe after the discovery of deteriorated brick and mortar around the ground floor access door. The intent of the investigation was to be an early step toward future restorations to extend the life of the standpipe.

The standpipe was constructed in 1892 as a public water supply tower consisting of a brick base standing 68 feet tall with Second Gothic Revival style design elements. A 36-foot-tall cylindrical steel water tank sits atop the base. Decommissioned in 1955, the standpipe was named an American Historic Water Landmark in 1975.

JPR performed a visual inspection around the exterior of the tower as well as the safely accessible areas of the interior structure – from the ground floor to the top floor, immediately below the tank. Non-destructive testing was performed using a rock hammer for sounding and chipping; a 4-foot carpenter’s level for checking level, plumb, and straightness; a magnifying glass for close examination of construction material cracks; and a flashlight. A drone was also used to collect valuable high-elevation images of the standpipe tank quickly and efficiently, as well as obtain comprehensive evidence on the condition of the brickwork from top to bottom at areas that were not easily or cost-effectively accessible.

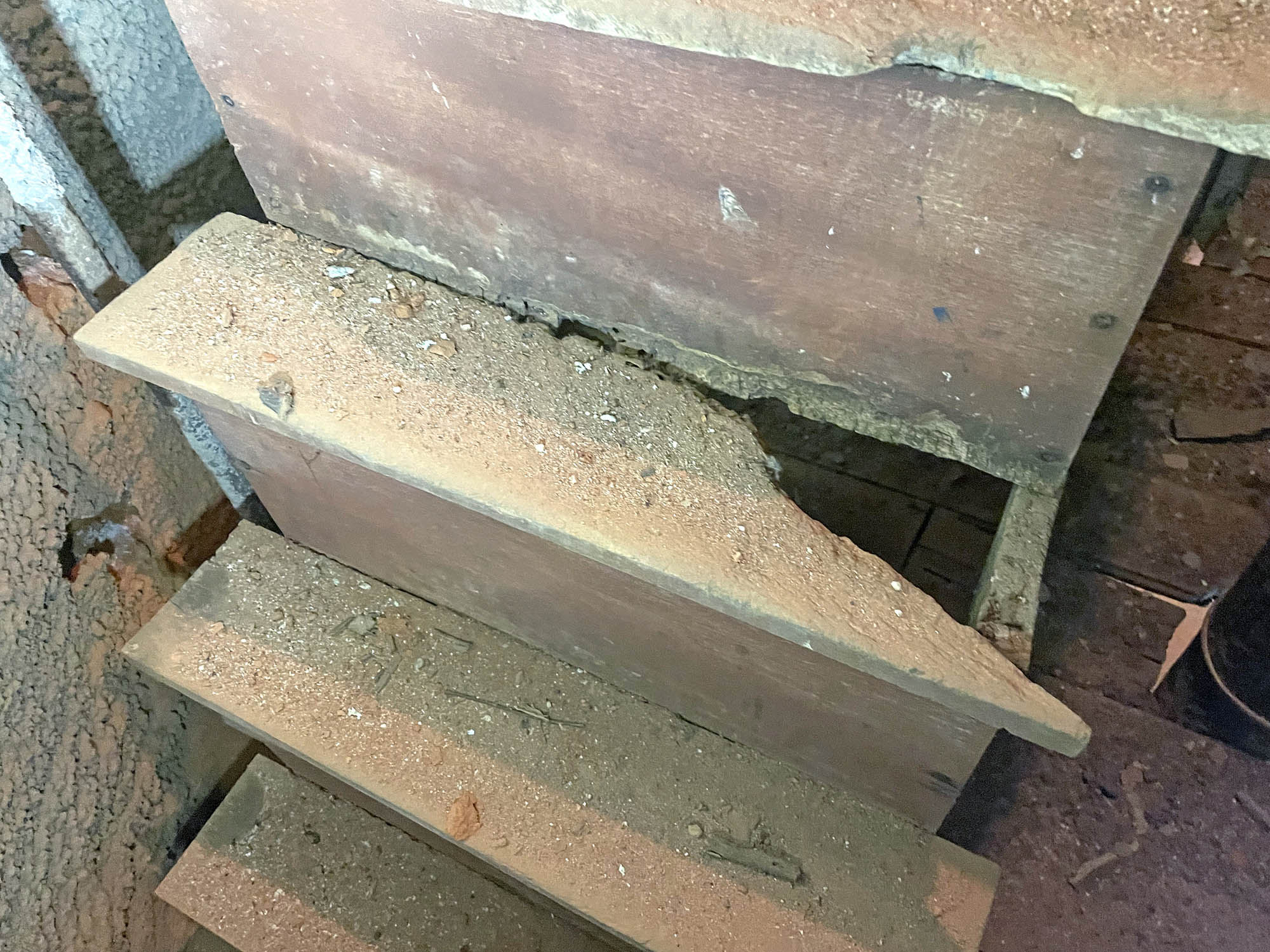

As part of the Report, comprehensive photographic images were organized to enable the client not only to observe the structural problems that have been identified but also to gauge the prevalence of these issues across the entire structure. They illustrate the deterioration of the wood decking, staircases, and supports that were original to the structure, while highlighting the absence of safety handrails. The images also provide insight into the standpipes condition, eliminating the need to enter the structure and expose oneself to unsafe conditions.

JPR provided the Town with a list of recommended historical restoration contractors, as well as potential sources of grant funding for restoration construction. Our team will continue to work with the Town on future phases and ultimately the restoration of the standpipe.

This historic and cherished standpipe is an iconic centerpiece within the Town’s ongoing development toward a central facility for civic events. The future structural and aesthetic restoration will extend its service life for civic activities for generations to come.
